Automatic Fire Suppression Device for Electrical Panels
Automatic Fire Suppression Device for Electrical Panels
Content
Small-Space Fire Suppression Equipment – Container Type
Design Patent Registered
Utility Patent Pending
KFI Type Approval Certified (GANSO24-5) – KFI: Korea Fire Institute
Design Patent Registered
Utility Patent Pending
KFI Type Approval Certified (GANSO24-5) – KFI: Korea Fire Institute

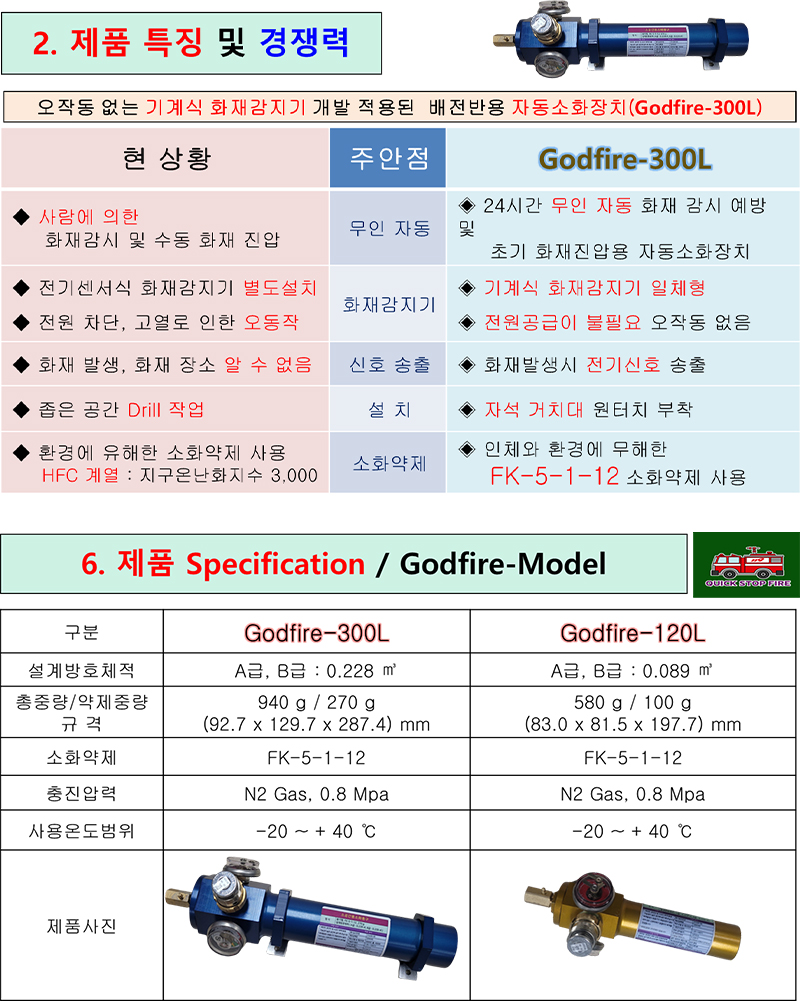

Specification
- When a fire occurs in a distribution or switchboard panel and the internal temperature remains above 72°C for 15 seconds, the automatic suppression patch activates. The extinguishing agent FK-5-1-12 is discharged under 0.8 MPa of nitrogen pressure, suppressing the fire within seconds.
- When the device is activated due to a fire, a pressure detection system sends a fire alert signal, enabling easy identification of the specific panel that caught fire in case of multiple installations.
- The extinguishing agent FK-5-1-12 is a non-conductive substance, ensuring no secondary damage to documents, electrical parts, or devices.
- Thanks to a magnetic mounting system, the device can be installed inside narrow panels without the need for drilling holes.
